Through communication and coordination, recently, Xi’an Maurer Lab and TechCorr Europe have reached an agreement on technical fields, such as in-service robotic tank inspection, 3D scanning technology of TechnoSoft, and so on. This is a brief introduction of TechCorr Europe :

TechCorr Europe

TechCorr is a global leading provider for inspection services.TechCorr is the exclusive business partner of Xi’an Maurer Petroleum Engineering Laboratory Co., Ltd. regarding storage tank, pipeline and advanced NDT inspection within China area.

    17 years of experience with the most advanced technology in Tank inspection, pipeline integrity, non-destructive testing (NDT), etc.

    The business covers 20+ countries worldwide, including North America, South America, Europe, Middle East, Russian, India, etc.

    600+ highly-skilled and certified inspectors providing professional technical services around the world.

Some of advanced inspection and repair technologies:

1. In-service robotic tank inspection

-Cost-saving: Reduce the cost of tank cleaning and conventional out-of-service inspection.

-Time-saving: Minimize downtime and maximize productivity.

-Efficient: InTank® robotic service follows a digital inspection grid and collects more than 200,000 UT scans for computer analysis.

-Reliable: High-density UT scanning with the definitive API 653 tank inspection report.

-Safe: Automatic inspection controlled in a trailer, not necessary for inspectors entering tanks.

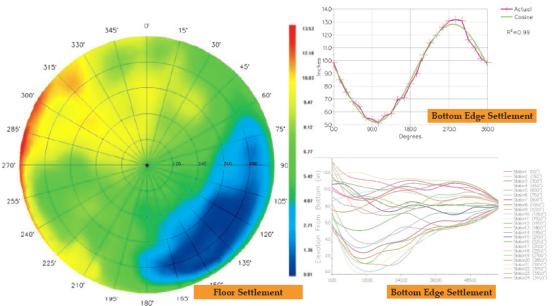

2.3D scanning technology of TechnoSoft

-Range: Engineering services for storage tanks, pressure vessels, pipelines, terminals, refineries, plants, etc.

-Applicability: New construction design, equipment evaluation, certified inspection services, and repair planning of existing assets.

-Software: AMETank is an powerful application software for the engineering of storage tanks per API 650 and API 620 standards. It provides an interactive feature-based design environment for rapid configuration and layout of tank bottom, shell, roof, structure, and appurtenances.

3.Other inspection technologies

-MFL–Magnetic Flux Leakage tank floor inspection: Silverwing 3DMI for mapping of corrosion.

-PEC–Pulsed Eddy Current inspection: Penetrating insulation of 200mm thick, concrete, brick, etc. with a working temperature of -100℃ to 550℃.

-LRGUT–Long Range Guided Wave Ultrasonic Technique: Effective pipeline inspection from one single location to detect corrosion and loss of integrity in pipelines.

-Tank Crawler: Fastest scanner for line scanning and corrosion mapping of inspection methods of UT, PA, EC, TOFT, etc.

4.Advanced composite repair wrap of Aquawrap

-Aquawrap® is a low cost composite system for use in repair and reinforcement of existing mechanical systems, structures and piping.

-Qualification: ISO 9001:2008 certified manufacturer, validated to ASME PCC-2 standard and ISO 24817 technical specification.

-Features:

•       Low cost

•       Uses a water-activated polyurethane resin

•       Simple and easy to use – just “rip & wrap”

•       Cures in wet conditions and underwater

•       Many different widths and lengths

•       Excellent toughness – resists cracking

•       Heat resistant to 250°F

•       Non-hazardous

•       30-minute working time, perfect for long installations

•       High strength

•       Can be applied over a wide temperature range
